Pendulum Simple Shearing Machine CNC Hydraulic Guillotine Shears HGS-30-3200

The guillotine shearing machine is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality. Guillotine shear is available with a broad series of standard equipment but it is possible, at any moment, to add optional equipment according to requirement. The robust monolithic structure is a guarantee of great stability and precision of cut. Even the design is perfected according to criteria of maximum functionality and efficiency.

DELEM CNC Controller

The powerful new generation Delem DAC-360T controller was chosen to provide a user-friendly and versatile touch control solution for the shearing machine. Multiple back gauge axes, cutting angles, stroke lengths and gaps can be controlled based on state-of-the-art electronics as needed.
Operation is most user-friendly with its easy-to-use touchscreen navigation on the bright LCD screen. Digital programming with clear icons guides the operator through all programming functions.

CNC Controller DELEM DAC-360

• Panel based housing
• Bright LCD screen
• Backgauge control
• Retract function
• Cutting angle control
• Cutting gap control
• Stroke length limitation
• Manual movement of axes
• Force control

CNC Controller DELEM DAC-310

• Using servo-control technology
• 275×48 element bright liquid crystal display monitor
• The electrically operated rear bumper material automatic positioning
• Makes concessions automatically
• The multi-channel moves automatically
• Procedure and procedure step link
• The cutting counting
• Cuts the regalution to define that the power failure rememvered
• Male/British system transformation

CNC Back Gauge System

One of the most important factors affecting cutting capabilities is the design and stability of the back gauge. With a perfect product, a stable and precise back gauge, high-quality cuts are possible.
The high-speed ball screw rear gauge system movement is also supported by linear guides, which helps the rear gauge achieve a longer service life, greater sensitivity, and enhanced protection against any collisions.

Confugurations
Sfety Fence Left and right protective guard guarentees operation safety	Overall Welding Intergal welding fornt workbench and machine body guarantees that there are no seam between front workbench vertical plate and bilateral vertical plates
HIWIN Ball Screw High precision backgauge is equipped with Taiwan HIWIN ball screw and polished rod.	Front Tables Roller ball is installed on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately
Bosch Rexroch Valve Germany Bosch Rexroch integrated hydraulic valveblock, hydraulic trasmission with high reliability, integrated hydraulic system can effectively alleviated problems caused by leakage of hydraulic fluid.	Blade Clearance Adjust Adjust the cutting blade gap by motor according to thethickness of plate, which can get better cutting perfor-mance.
Premium Backgauge With high quality and precise bakgauge which is controller by servo motor	SCHNElDER Electrical components High aulity electric parts can perform well even the electricity is not stable and customers can easily get the replace ment anywhere in the world.

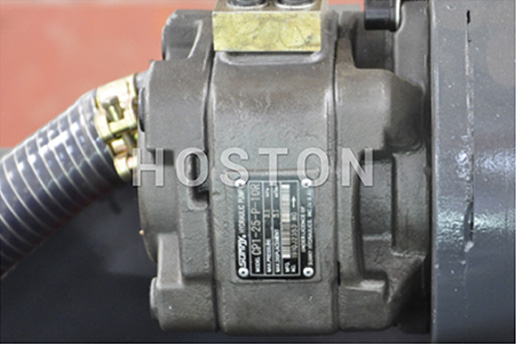

SUNNY Hydraulic Pump American world famous brand for hydraulic pump per-forms well and provides qreat power for the whole hydraulic system.	SIEMENS Motor German famous brand motor improves the lifespan of the machine and keeps the machione working in low noise environment.

Jiangsu Hoston Machine Tools Co., Ltd. (Hongkong Hoston Group CO., LIMITED) is an experienced manufacturer in the field of steel metalwokring machinery. Hoston brand was established in 2009. The company has a professional team integrating R&D, manufacturing and sales, dedicated to the design and development, production, technical support, service and consultation of sheet metalworking machines . Hoston is a lean and dynamic company that develops custom automated cutting and bending solutions for its customers.

Hoston's main products include: CNC press brakes, shearing machines, fiber laser cutting machines, plate rolling machines, profile bending machines, pipe bending machines, and ironworkers. These products are widely used in specialized production fields such as decoration, metallurgy, shipbuilding, automobiles, and machinery. In these industries, our machines have received wide trust. Because we believe that only strict quality control and thoughtful customer service can make customers trust us faithfully.
