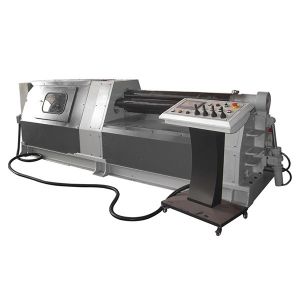

Automated Roller Machines Sheet Metal Cnc Bending Rolls 4 Roller Plate Rolling Machine W12 25x2500mm

1. 4 roller plate rolling machine has the prebending function of the plate end and the CNC rolling function.It can feed the metal plate at a time, and can complete the pre-bending and the roll forming of the workpiece without turning the head.
2. The upper working roll of the machine is the main drive roll, and the lower roll and both sides of the roll are hydraulically driven.
3. The lift displacement is controlled by the computer and is automatically leveled. The screen display shows the synchronization accuracy of ±0.1mm.
4. The tilting and resetting of the rollover bearing body is hydraulic transmission, the balance of the upper roll is equipped with a balance mechanism, which can easily take out the rolled workpiece.
5. It has a mobile stand-alone console that can be moved at any time; the machine is equipped with a safety interlocking device and is safe.
6. Due to its full-featured, high-precision, and easy-to-use operation, this deviceis the ideal contemporary CNC coiling device. It is the ideal model for rolling circular and arcshaped workpieces in energy, transportation, petroleum, chemical, boiler, shipbuilding, hydropower, and metal structure industries.

W12 Hydraulic Plate Rolling Machine with 4 Rolls

Working Principle

Structure Style

It belongs to four rollers plate rolling machine. It is wide used in the manufacture of pressure vessels, machinery, hydropower, construction and other industries of the barrel body pre bending, roll round, and also have a function of checking circle and leveling. The top roller driven by hydraulic motor. Through the friction between the metal plate and the top roller to drive the botton roller and side rollers rotate. And supply the torque for bending plate. The botton roller, side roller and drop end are all driven by hydraulic oil tank. The botton roller move up and down, the side roller move along with an arc. The botton roller rising to clamp rising to clamp the plate and the side title up to pre-bend the end of the plate.

Jiangsu Hoston Machine Tools Co., Ltd. (Hongkong Hoston Group CO., LIMITED) is an experienced manufacturer in the field of steel metalwokring machinery. Hoston brand was established in 2009. The company has a professional team integrating R&D, manufacturing and sales, dedicated to the design and development, production, technical support, service and consultation of sheet metalworking machines . Hoston is a lean and dynamic company that develops custom automated cutting and bending solutions for its customers.

Hoston's main products include: CNC press brakes, shearing machines, fiber laser cutting machines, plate rolling machines, profile bending machines, pipe bending machines, and ironworkers. These products are widely used in specialized production fields such as decoration, metallurgy, shipbuilding, automobiles, and machinery. In these industries, our machines have received wide trust. Because we believe that only strict quality control and thoughtful customer service can make customers trust us faithfully.
